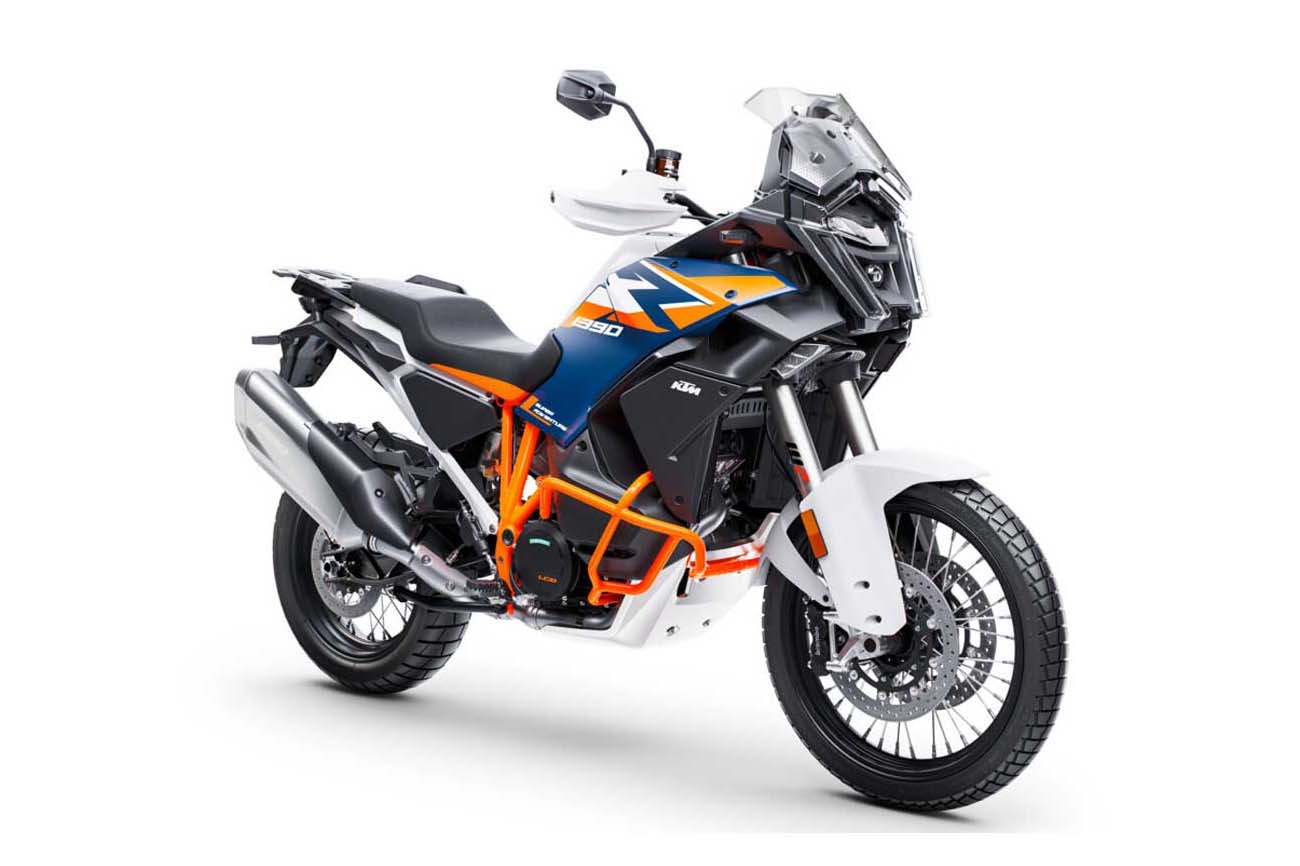

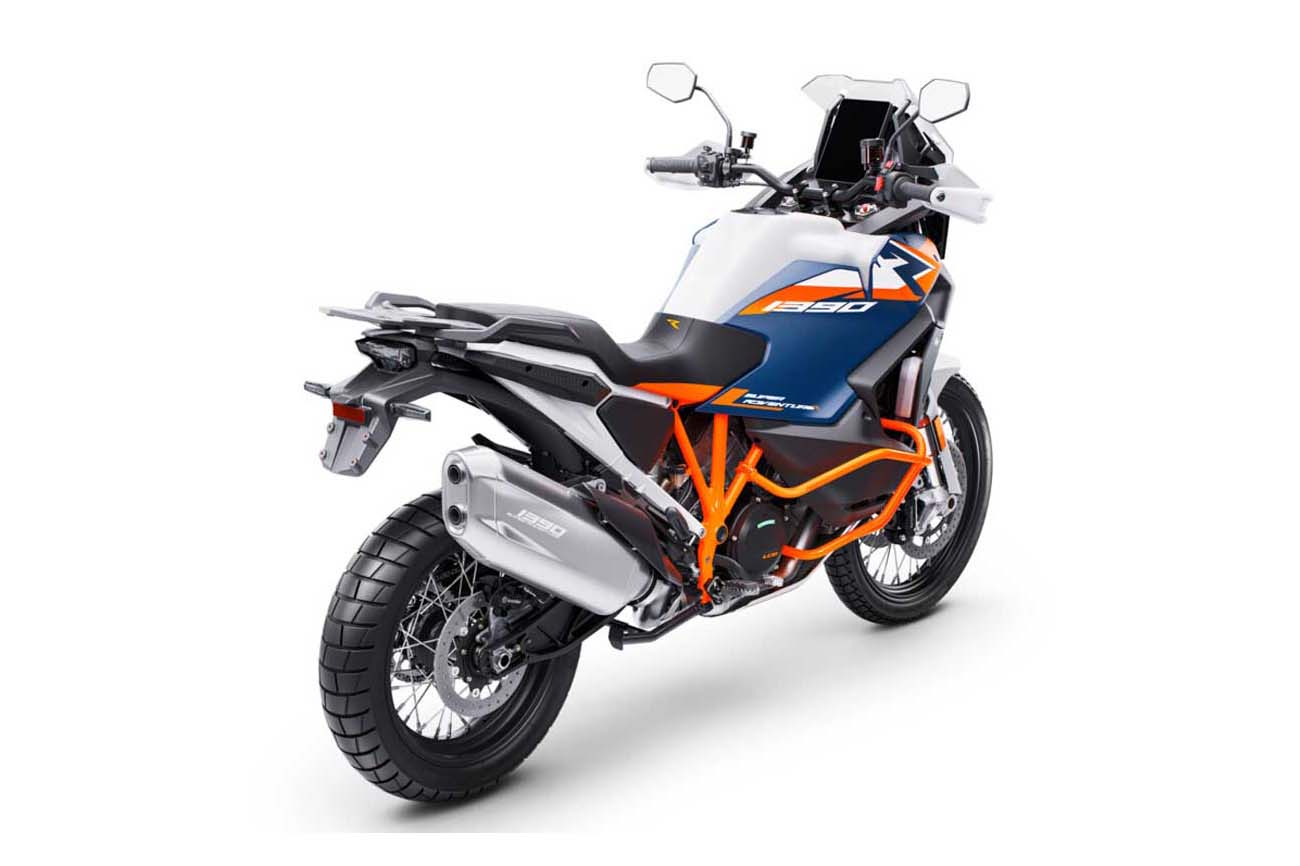

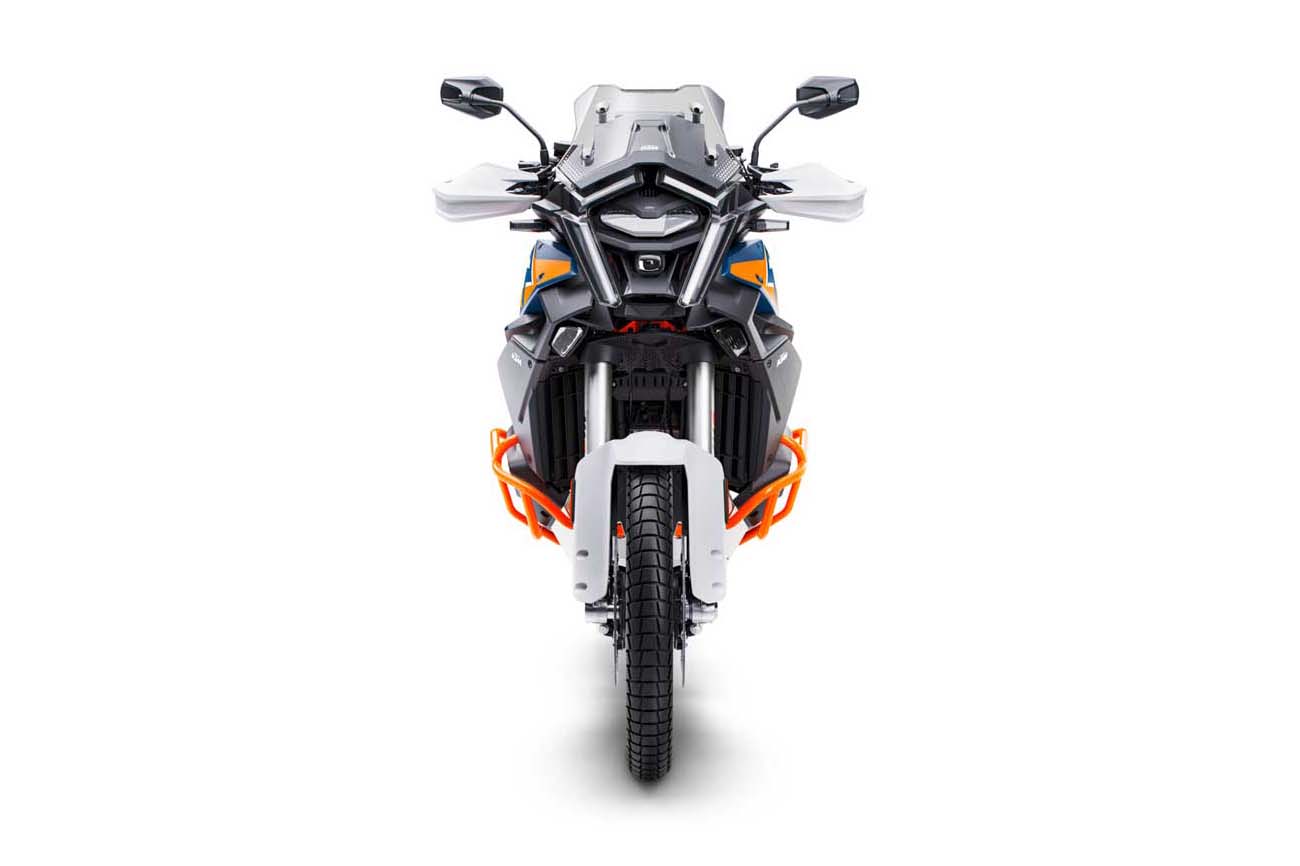

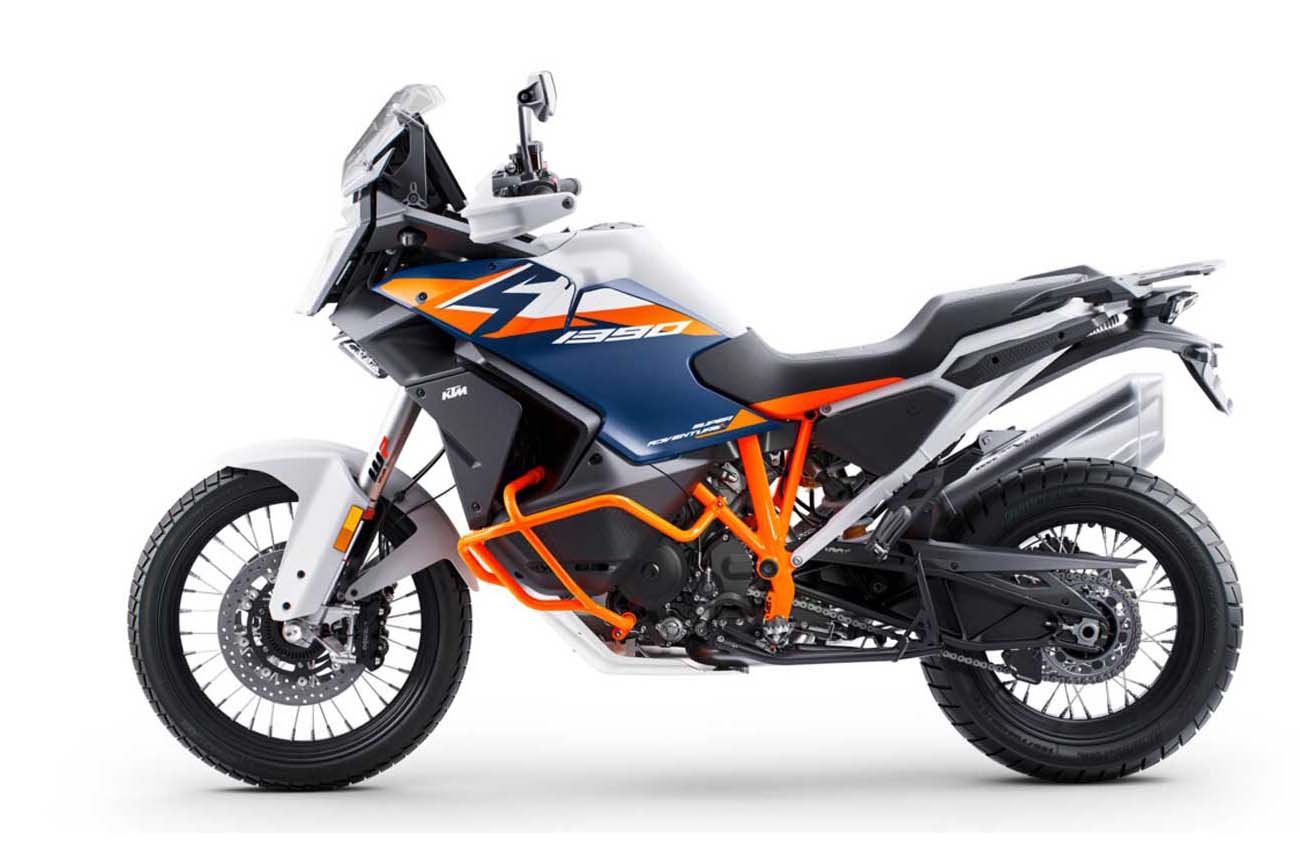

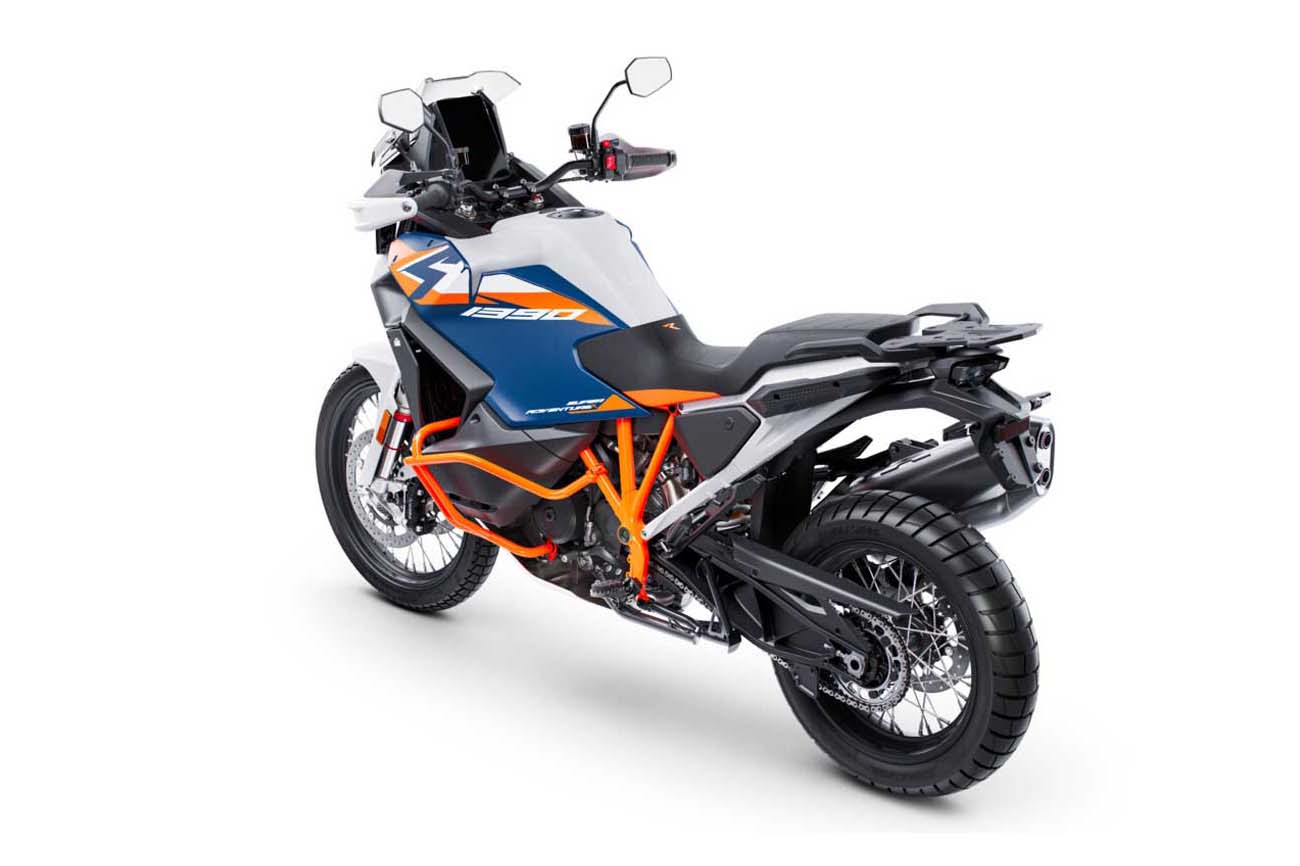

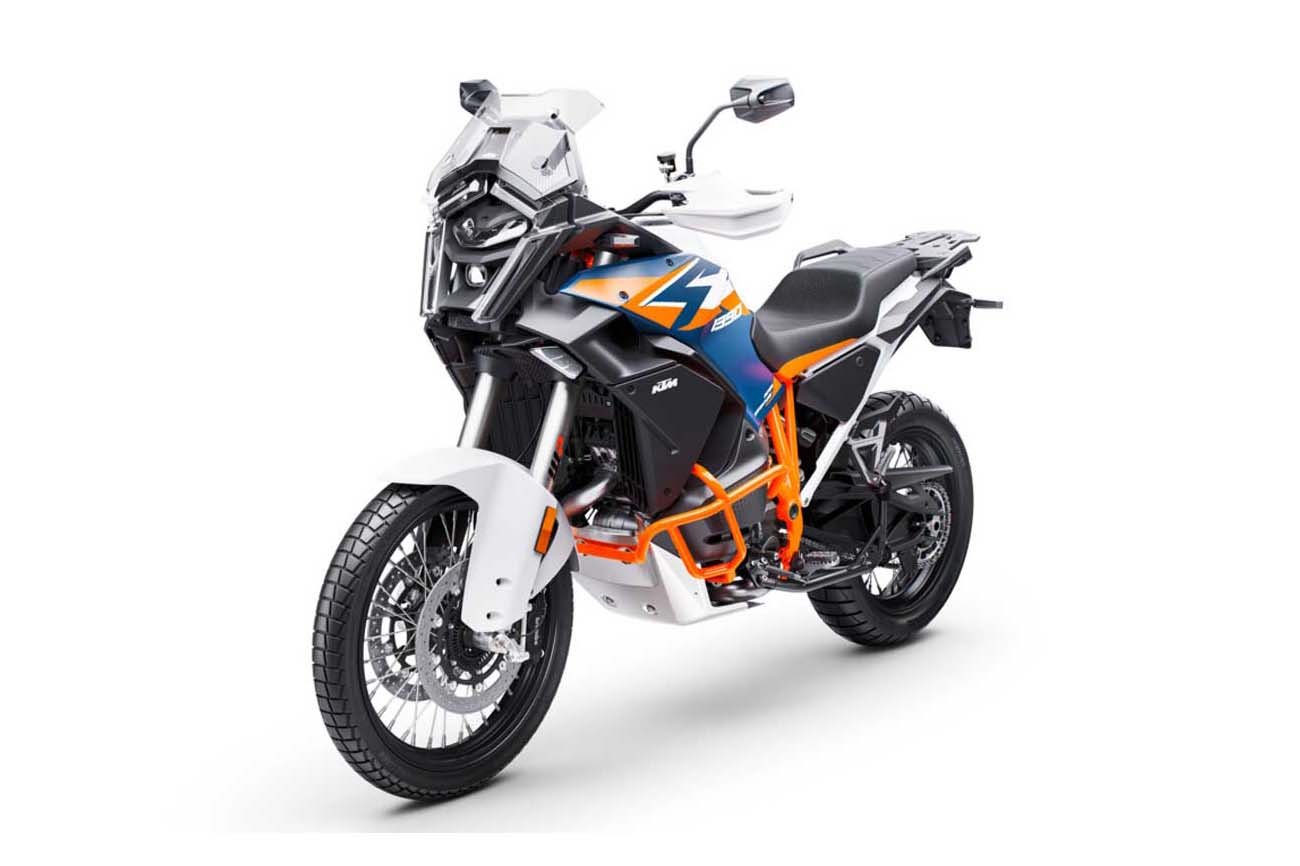

Open a map app, find the most remote location, and hit navigate. The KTM 1390 SUPER ADVENTURE R is engineered to cross the wildest, most challenging terrain with unmatched ability and class-leading performance. Not only has it proven itself with a stable of hard-hitting predecessors, but the KTM 1390 SUPER ADVENTURE R nameplate remains the ultimate READY TO RACE v-twin-powered travel machine ever made.
Now available at Lings Powersports, the KTM 1390 Adventure R distills Dakar-inspired performance into a road-registered package, offering unparalleled off-road capability and dynamic street presence.
Its heart is a beastly 1,301 cc LC8 V-twin engine, producing approximately 160 PS and 106 Nm of torque. With ride-by-wire throttle, selectable ride modes, and quickshifter standard, it delivers thrilling, controllable power whether carving through gravel or accelerating on the highway.
Mounted on a rugged chromoly steel frame with a bolt-on alloy subframe, the Adventure R rides on Dakar-tuned WP XPLOR PRO suspension—fully adjustable 48 mm inverted forks and link-adjusted monoshock providing 240 mm front travel and 230 mm at the rear. This long-travel setup excels over rugged terrain, delivering confidence and composure off the beaten path.
It rolls on rally-spec 21″ front and 18″ rear wire-spoke wheels wrapped in tubed, off-road-ready tires. With approximately 264 mm of ground clearance and a 23 L fuel tank, it’s built for big mileage and tough terrain.
Braking is handled by dual 320 mm front discs clamped by Brembo Stylema four-piston radial calipers, backed by a 260 mm rear disc—all managed via switchable cornering ABS with off-road-friendly modes and Supermoto-ready setting. A 48 mm steering damper adds stability over rough surfaces.
Riders benefit from a 7″ TFT display offering multiple ride modes—Street, Sport, Rally, Enduro, Off-Road, and Off-Road Pro—as well as anti-wheelie, launch control, and cornering traction control. Connectivity is improved with full smartphone integration, USB-C charging, and accessory-ready wiring for heated grips or GPS mounts.
Adventure-focused ergonomics feature a two-position tall seat, wide fat bars, glove-friendly controls, and rugged engine protection. LED lighting and rally-style bodywork with integrated winglets ensure both functionality and aggressive presence.
The KTM 1390 Adventure R is a no-compromise rally-heritage machine, offering serious off-road performance, modern tech, and full touring practicality—all in a street-legal package.
| Category |
Specification |
| Engine |
2-cylinder, 4-stroke, V 75° |
| Displacement |
1350 cm³ |
| Power |
127 kW (170 hp) @ 9,500 rpm |
| Torque |
145 Nm @ 8,000 rpm |
| Fuel System |
Keihin EFI with Ride-by-Wire (54 mm throttle body) |
| Transmission |
6-speed |
| Final Drive |
525 X-Ring Chain |
| Suspension (Front) |
WP XPLOR-USD, Ø 48 mm, 220 mm travel, fully adjustable |
| Suspension (Rear) |
WP XPLOR PDS shock absorber, 220 mm travel, fully adjustable |
| Brakes (Front) |
2 x Brembo Stylema Monobloc four-piston, radially mounted caliper, Ø 320 mm discs |
| Brakes (Rear) |
Brembo 2-piston fixed caliper, Ø 267 mm disc |
| Wheels |
Spoked wheels with aluminium rims; 21" front, 18" rear |
| Tyres |
Bridgestone Battlax Adventure Trail AT41; 90/90-21 front, 150/70-18 rear |
| Seat Height |
880 mm |
| Wheelbase |
1577 mm ± 15 mm |
| Rake / Trail |
64.8° / 112 mm |
| Tank Capacity / Range |
23 Litres / Approx. 377 km (234 miles) |
| Weight (Wet) |
Approx. 248 kg |
| Display |
8" portrait-mounted TFT touchscreen with connectivity |
| Service Interval |
15,000 km (9,300 miles) or annually; Valve clearance check every 60,000 km (37,200 miles) |
