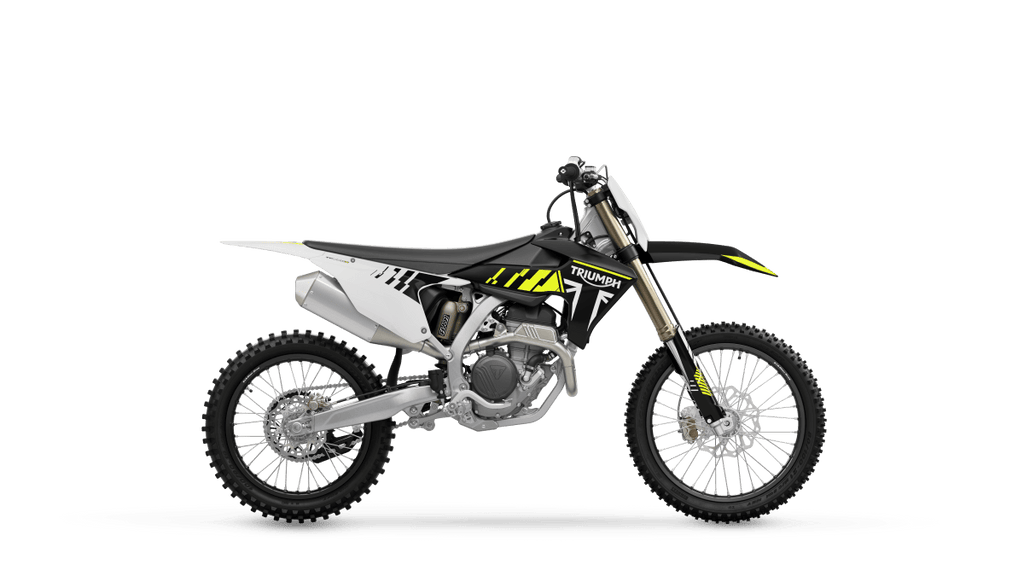

With an all-new and all-Triumph design, a class-leading power-to-weight ratio, and all the spec you need to win, the TF 250-X is the most complete package ever to launch into the ultra-competitive 250 segment.
Lings Powersports is proud to introduce the Triumph TF 250-X, a ground-up, race-developed motocross machine built to set a new standard in the 250cc class. Developed with championship-winning insight and engineered for podium-level performance, this bike delivers unrivalled agility, power, and control.
At the core of the TF 250-X is a compact, lightweight 249.95cc DOHC single-cylinder engine, designed to produce a responsive, torque-rich powerband perfect for competitive motocross. Featuring a forged aluminium piston, titanium valves, and a DLC-coated finger follower valve train, the engine offers exceptional performance and durability under pressure. A heavy-duty Exedy Belleville spring clutch ensures consistent feel and long-term reliability in the harshest conditions.
The hand-welded aluminium spine frame has been designed with optimal stiffness and mass centralisation in mind. Paired with KYB’s premium 48mm AOS coil-spring forks and a KYB rear shock, the chassis delivers razor-sharp handling and predictable feedback in ruts, over jumps, and through braking bumps.
Every component of the TF 250-X has been chosen for elite-level performance. Brembo brakes with Galfer discs provide consistent stopping power, while Pirelli Scorpion MX32 tyres on D.I.D DirtStar wheels give outstanding grip and durability. ProTaper handlebars and ODI grips complete the competition-focused cockpit.
Advanced electronics include selectable engine maps, launch control, and traction control, all easily adjusted via illuminated switchgear. The optional MX Tune Pro app allows for detailed tuning and diagnostics, giving riders full control over their setup.
Weighing in at just 104kg (dry), the TF 250-X combines power, precision, and premium components in a lightweight, race-ready package. Backed by Triumph’s factory support and global dealer network, it’s built to dominate.
Category |
Specification |
Engine |
Single Cylinder 4-Stroke DOHC |
Displacement |
249.95 cc |
Power |
|
Torque |
|
Fuel System |
Dellorto Throttle Body, Athena EMS |
Transmission |
5 Speed |
Final Drive |
13/48 |
Suspension (Front) |
KYB 48mm Coil Spring Fork, Compression/Rebound Adjustment, 310mm Travel |
Suspension (Rear) |
KYB Coil, Compression Adjustment (H and L Speed), Rebound Adjustment, 305mm Travel |
Brakes (Front) |
Brembo Twin 24mm Piston, 260mm Disc |
Brakes (Rear) |
Brembo Single 26mm Piston, 220mm Disc |
Wheels |
21" x 1.6" / 19" x 1.85"
|
Tyres |
80/100 - 21 / 100/90 - 19 |
Seat Height |
960 mm |
Wheelbase |
1492 mm |
Rake / Trail |
27.4 º / 116 mm |
Tank Capacity / Range |
7 L |
Weight (Wet) |
104 kg |
Display |
Hour Meter, Multifunction Switch Cubes |
Service Interval |
|
